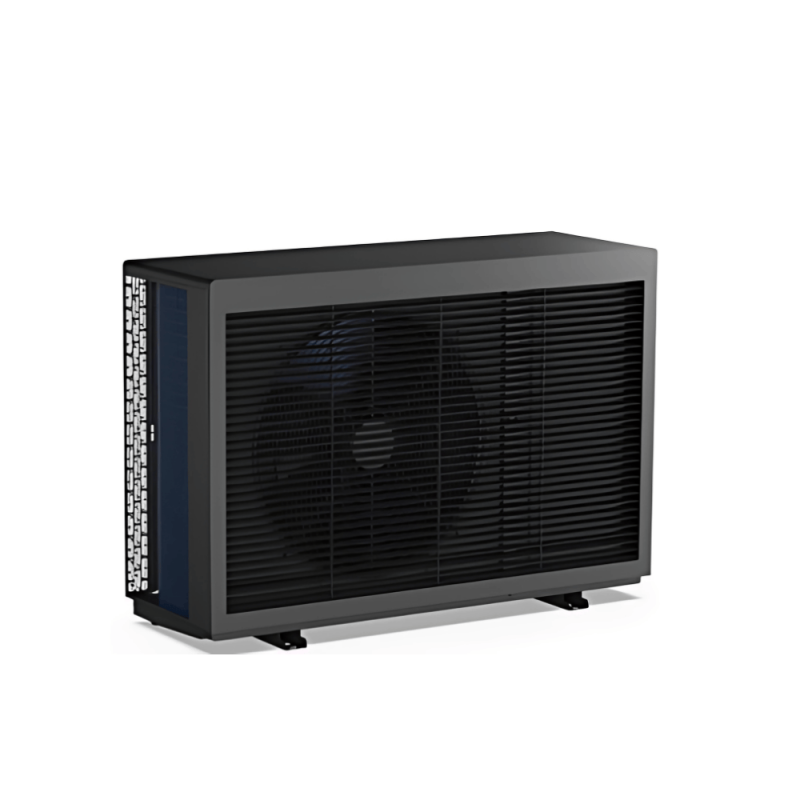

Intergas Xceed R290 12kW Air Source Heat Pump (050754)

How we heat our homes must change if we are to combat the effects of manmade climate change. With Xceed, our new, ultra-efficient monobloc air source heat pump (ASHP), you can help your customers cut out carbon emissions from their heating and cooling system for good. As with all monoblocs, you don’t need to be F-gas certified to install this heat pump as the refrigerants are in a closed circuit within the heat pump.

Xceed is available in four single-phase units with outputs of 6kW, 8kW, 12kW and 18kW and is compatible with our newly-launched range of Xylinder heat pump cylinders. Xceed has a maximum flow temperature of 75°C for heating and 18°C for cooling and the heat pumps are rated A+++ at 35°C and A++ at 55°C.

With a heat pump there will be some noise, but ours have a very quiet operation with a sound power level as low as 58dB(A) at 5 metres.

Box Contents:

• 1 x Intergas Xceed R290 12kW Air Source Heat Pump (050754)
• 1 x Controller
• 1 x HMI

Intergas Xceed R290 Air Source Heat Pump Features:

• R290 eco-friendly refrigerant
• Global Warming Potential (GWP) of 3
• Ozone Depleting Potential (ODP) of 0
• Operates effectively even at -25°C
• Functions at 35°C to keep energy bills low
• Outlet water temperature up to 75°C
• Dual temperature zone
• Flow Temperature Up to 75°C (for central heating & domestic hot water)
• A+++ at 35°C
• A++ at 55°C

Specifications:

Heat Pump dimensions and weight:

Height: 904mm

Width: 1287mm

Depth: 448mm

Weight: 134kg

If you have any questions about the Intergas Xceed R290 Air Source Heat Pump, you can email us.
